High Lifter Polaris Ranger 1000 8" Portal Gear Lift (50% Dual Idler)

If you’ve ever been called a dare devil, risk taker or bad ass, you need High Lifter’s latest and greatest addition to the portal family. Lift, power and performance is made possible with the High Lifter 8” Dual Idler Portals! The all NEW 8” Dual Idler portals were designed with a strategically clocked backing plate that allows for big tires and additional fender clearance to keep you moving through anything that comes your way!

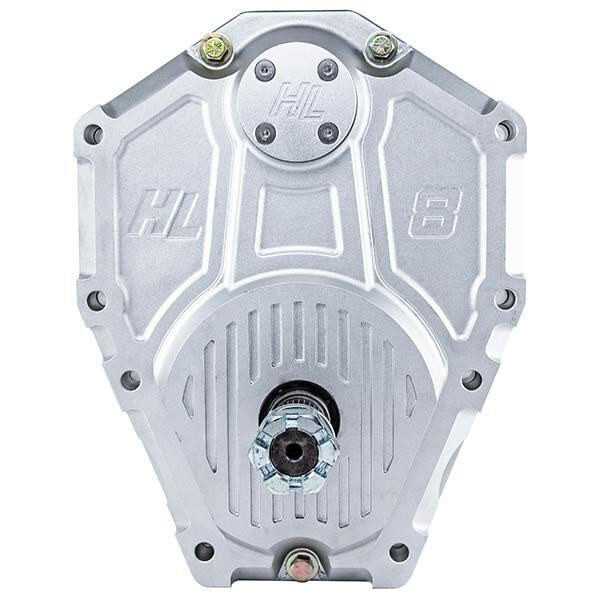

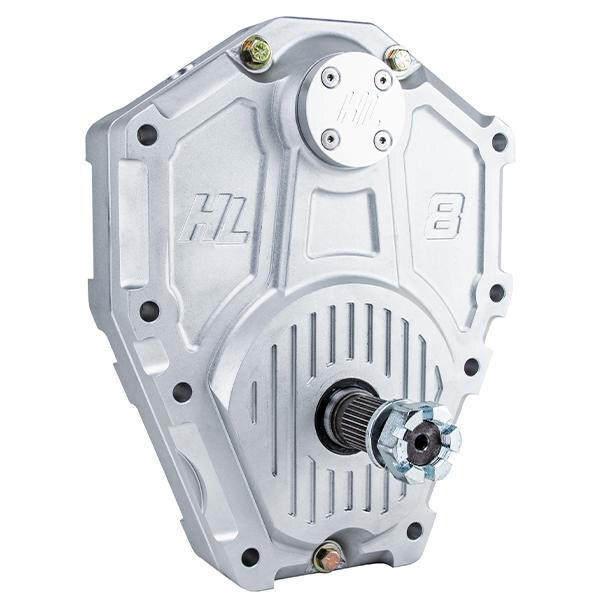

Forged Gear Boxes

The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8” portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!

• These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
• Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
• Forging is stronger than both cast and billet aluminum which is used by the competitor.

Brake lines

• No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
  • Large advantage for Can-Am owners!

Gear Box Venting

• Customers asked for box venting, and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

Seals

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

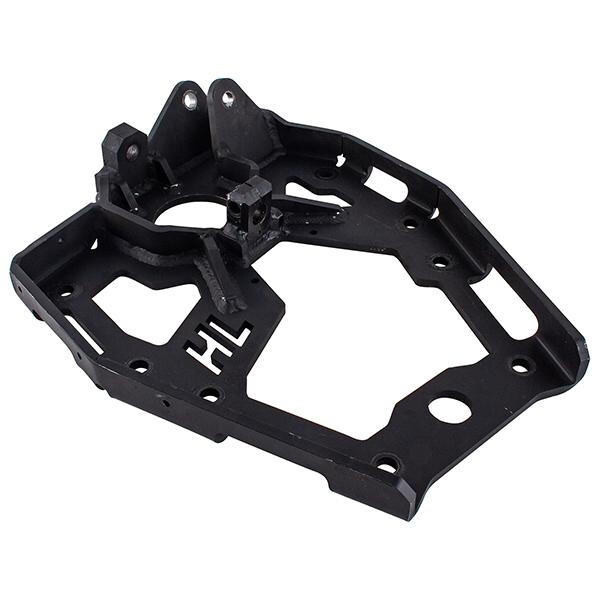

Backing Plate

• These are the strongest backing plates on the market
• 5/16” steel plate with bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications

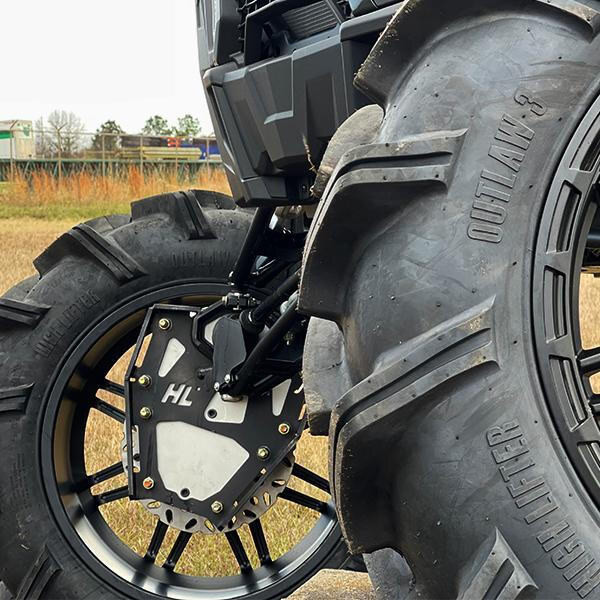

• Backing plates have an offset or “CLOCKED” 5” forward & rearward so you can run BIG tires and not interfere with your clearance!

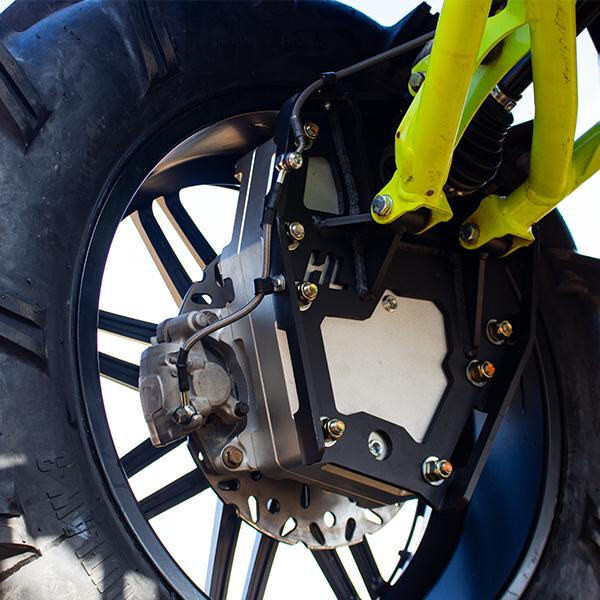

13” Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

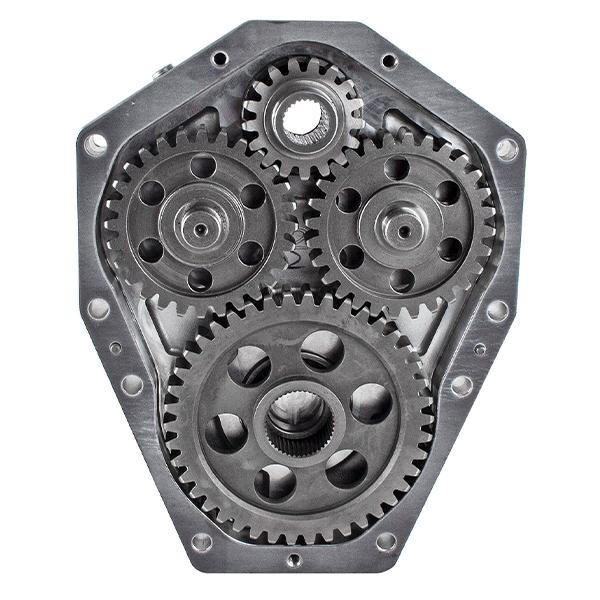

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Fitment

• 2018 Polaris Ranger 1000 XP
• 2018 Polaris Ranger 1000 XP Northstar
• 2019 Polaris Ranger 1000 XP Crew Northstar
• 2019 Polaris Ranger 1000 XP Crew
• 2019 Polaris Ranger 1000 XP
• 2019 Polaris Ranger 1000 XP Premium
• 2019 Polaris Ranger 1000 XP 20th Anniv Edition
• 2019 Polaris Ranger 1000 XP Crew Premium
• 2019 Polaris Ranger 1000 XP Crew 20th Anniv Edition
• 2019 Polaris Ranger 1000 XP Northstar
• 2019 Polaris Ranger 1000 XP High Lifter Edition
• 2019 Polaris Ranger 1000 XP Crew High Lifter Edition
• 2019 Polaris Ranger 1000 XP Back Country
• 2019 Polaris Ranger 1000 XP Crew Back Country
• 2020 Polaris Ranger 1000 XP Premium
• 2020 Polaris Ranger 1000 XP NorthStar
• 2020 Polaris Ranger 1000 XP Texas Edition
• 2020 Polaris Ranger 1000 XP High Lifter Edition
• 2020 Polaris Ranger 1000
• 2020 Polaris Ranger 1000 EPS
• 2020 Polaris Ranger 1000 Premium
• 2020 Polaris Ranger 1000 XP Crew Premium
• 2020 Polaris Ranger 1000 XP Crew NorthStar
• 2020 Polaris Ranger 1000 XP Crew Texas Edition
• 2020 Polaris Ranger 1000 XP Crew High Lifter Edition
• 2020 Polaris Ranger 1000 Crew
• 2020 Polaris Ranger 1000 Crew EPS
• 2020 Polaris Ranger 1000 Crew Premium
