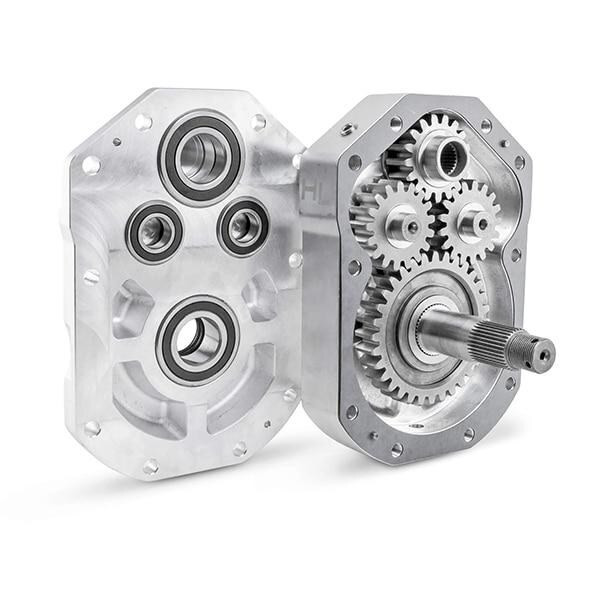

What are the Dual Idlers with 60% Reduction Kit? This High Lifter Can-Am Defender Portal Gear Lift (6") (45% Dual Idler) (PGL-645DI-C1D) is engineered as a gearing setup that allows us to place two idler gears in the portal gear box. Our competitor only has a single gear option with their greatest reduction at 45%. The dual idler gears spread the load between twice as many teeth on the gears, which doubles the area and reduces stress by half allowing more abuse. Like any other portal kit there will be a reduction in top speed when running the 6” Dual 60% gears. This kit is for riders who are looking for torque and power. The dual 60% is perfect for the hardcore mud rider that wants to hit the holes hard and come out on the other side!
Features
- High Lifter improved the portal design by adding a second idler gear in the gear box
- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
- You gain more reliable torque transfer
- If you run a 40” tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
- Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
- 45% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
- Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!
Overview
Forged Gear Boxes
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with Bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
13” Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
Changeability
- The High Lifter 45% Single Idler Kit can be converted to a 60% Single Idler Kit.
- This is great for having a less expensive option when you increase tire size. You won’t need a completely new portal kit.
Fitment
- 2016 Can-Am Defender HD8
- 2016 Can-Am Defender HD10
- 2016 Can-Am Defender HD8 DPS
- 2016 Can-Am Defender HD10 DPS
- 2016 Can-Am Defender HD8 XT
- 2016 Can-Am Defender HD10 XT
- 2016 Can-Am Defender HD10 CAB
- 2017 Can-Am Defender HD10
- 2017 Can-Am Defender HD10 CAB
- 2017 Can-Am Defender HD10 DPS
- 2017 Can-Am Defender HD10 XT
- 2017 Can-Am Defender HD8 BASE
- 2017 Can-Am Defender HD8
- 2017 Can-Am Defender HD8 DPS
- 2017 Can-Am Defender HD8 XT
- 2018 Can-Am Defender HD10
- 2018 Can-Am Defender HD10 DPS
- 2018 Can-Am Defender HD10 XT
- 2018 Can-Am Defender HD10 CAB XT
- 2018 Can-Am Defender HD8
- 2018 Can-Am Defender HD8 DPS
- 2018 Can-Am Defender HD8 XT
- 2018 Can-Am Defender HD10 XMR
- 2018 Can-Am Defender HD10 XTP
- 2019 Can-Am Defender HD10 DPS
- 2019 Can-Am Defender HD10 XT
- 2019 Can-Am Defender HD10 XTP
- 2019 Can-Am Defender HD10 XMR
- 2019 Can-Am Defender HD10 CAB
- 2019 Can-Am Defender HD8
- 2019 Can-Am Defender HD8 DPS
- 2019 Can-Am Defender HD8 XT
- 2019 Can-Am Defender HD8 CAB
- 2020 Can-Am Defender HD10 DPS
- 2020 Can-Am Defender HD10 XT
- 2020 Can-Am Defender HD10 XTP
- 2020 Can-Am Defender HD10 XMR
- 2020 Can-Am Defender HD10 CAB XT
- 2020 Can-Am Defender HD8
- 2020 Can-Am Defender HD8 DPS
- 2020 Can-Am Defender HD8 XT
- 2020 Can-Am Defender HD8 CAB XT
- 2020 Can-Am Defender HD5
- 2020 Can-Am Defender HD5 DPS
- 2020 Can-Am Defender HD10 Mossy Oak Edition
- 2021 Can-Am Defender HD10 DPS
- 2021 Can-Am Defender HD10 LTD CAB
- 2021 Can-Am Defender HD10 XT
- 2021 Can-Am Defender HD8
- 2021 Can-Am Defender HD8 CAB DPS
- 2021 Can-Am Defender HD8 DPS
- 2021 Can-Am Defender HD8 XT
- 2021 Can-Am Defender HD5
- 2021 Can-Am Defender HD5 DPS
